ASTM water & air tested ASTM-E84 tested (Class A Fire rating) ASTM-E1592 tested UL 580, Class 90 Dade county tested Florida building code compliant FM tested

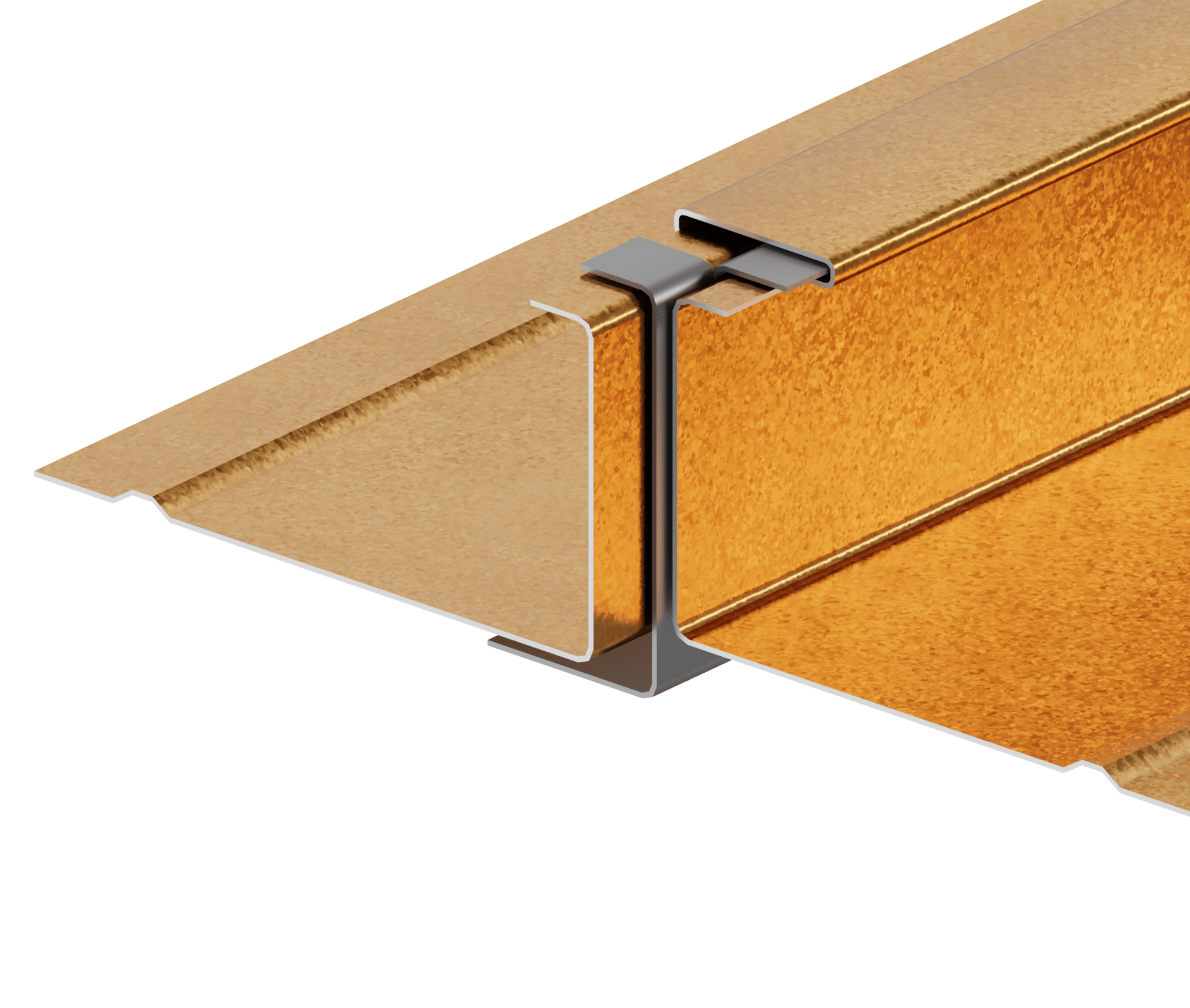

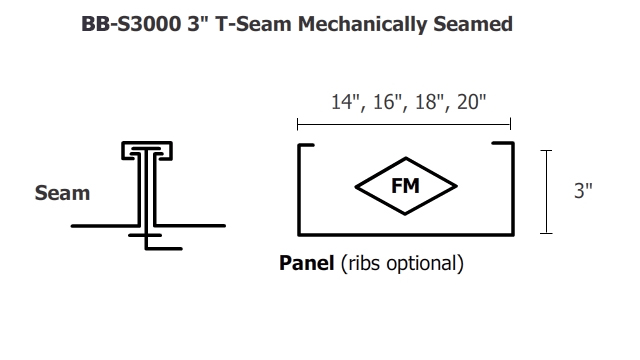

BB-S3000 T-Seam Roof Panel Details The BB-S3000 T-Seam metal roof panel is a nominal 3” deep structural system designed for superior spanning capabilities and a high, weather-tight seam. Ideal for heavy industrial and large buildings, it accommodates low slopes, long panel runs, and wide span structural requirements. Structural Use: Engineered for heavy-duty applications with wide span capabilities. Slope: Suitable for shallow slopes of less than 3"/12". Design: Features a wide mechanical seam for enhanced weather-tight performance. Performance Testing: Includes ASTM water and air tests, ASTM-E84 for Class A Fire rating, and ASTM-E1592 for structural strength. Compliance: Meets Florida Building Code requirements and FM testing standards, with weather-tightness warranties for added reliability.
Share

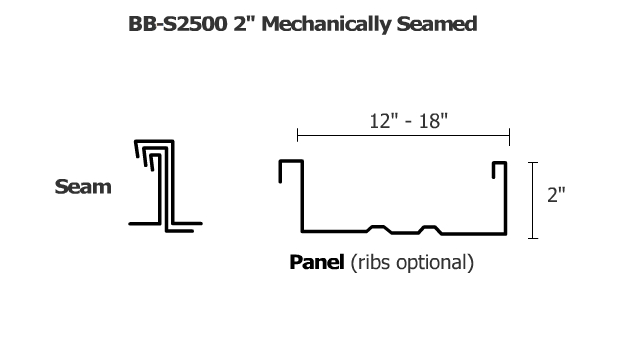

The BB-S2500 metal roof panel is a 2-inch mechanically seamed structural system, designed primarily for pre-engineered buildings. As one of the most extensively tested metal roof systems, it offers exceptional durability and performance. The panel features a heavy-duty interlock clip that secures the panels while allowing for thermal expansion and contraction. Available in three seam styles—45°, 90°, and 180°—it provides flexibility for various architectural needs. Structural: Ideal for structural applications with architectural detail capability. Slope: Suitable for shallow slopes of less than 3”/12”. Design: Includes a narrow seam and mechanical seam. Testing and Compliance: ASTM water and air tested ASTM-E84 tested (Class A Fire rating) ASTM-E1592 tested UL 580, Class 90 Dade County tested Florida Building Code compliant FM tested
Share

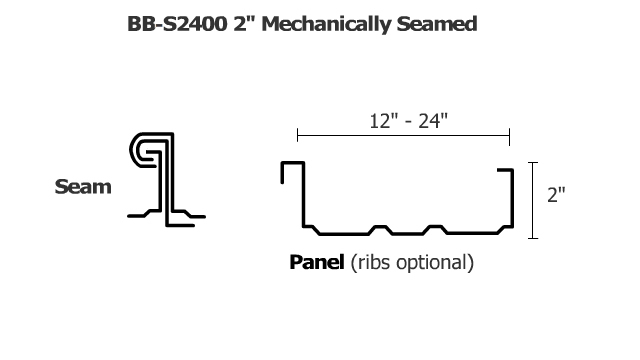

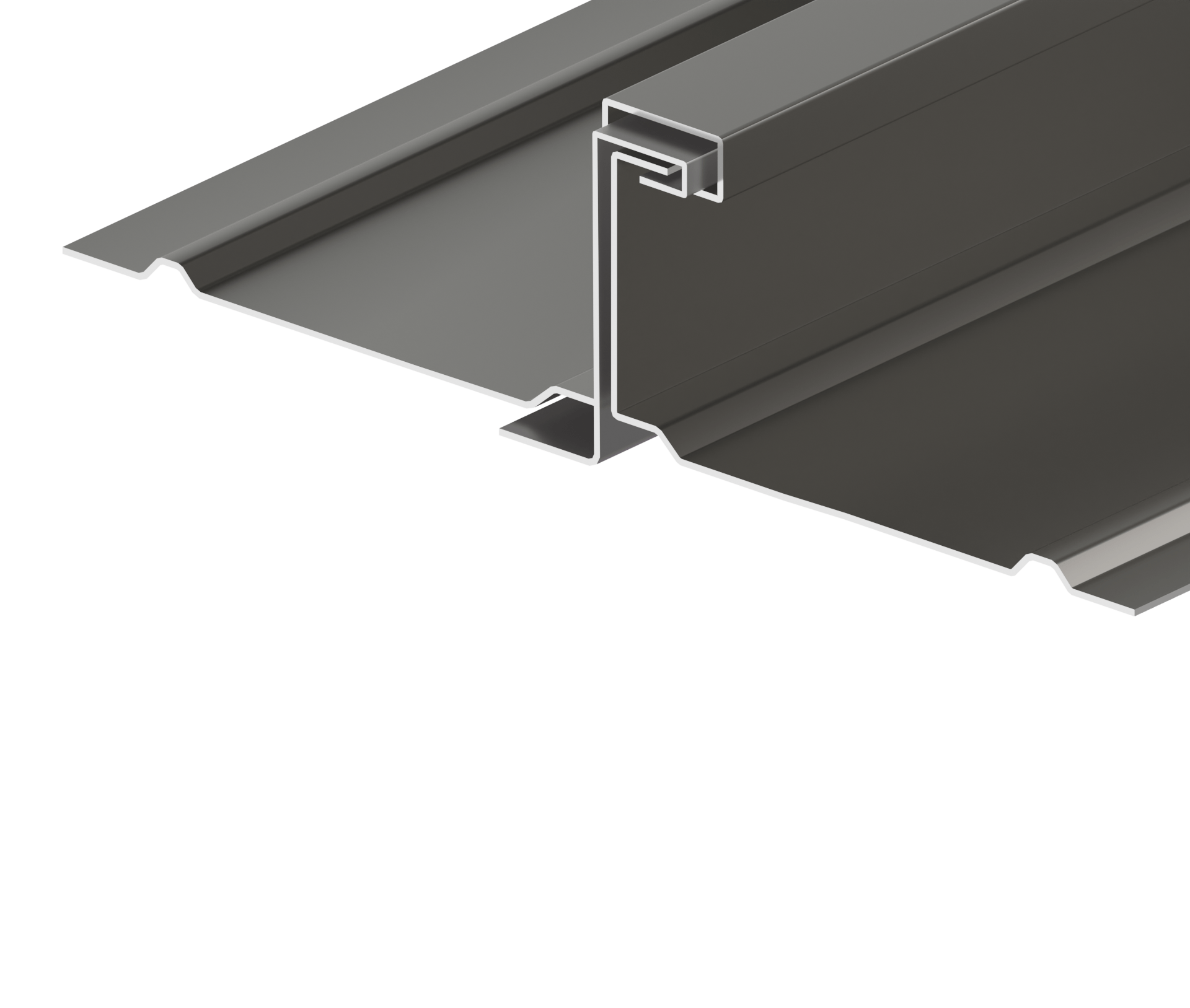

S2400 Roof Panel Details Structural Use: Ideal for mansard or fascia applications. Design: The BB-S2400 is a 2" mechanically seamed panel known for its strength, offering both single-lock and double-lock configurations to improve spanning capabilities. It can also be curved for radius designs and features a narrow seam. Performance: This panel system is extensively tested, including ASTM water and air tests, ASTM-E84 for Class A Fire rating, and ASTM-E1592 for structural performance. It also meets UL 580, Class 90 standards, Dade County testing, and Florida Building Code compliance. Durability: Available in a wide range of coatings and colors, with weather-tightness warranties to ensure long-lasting performance.
Share

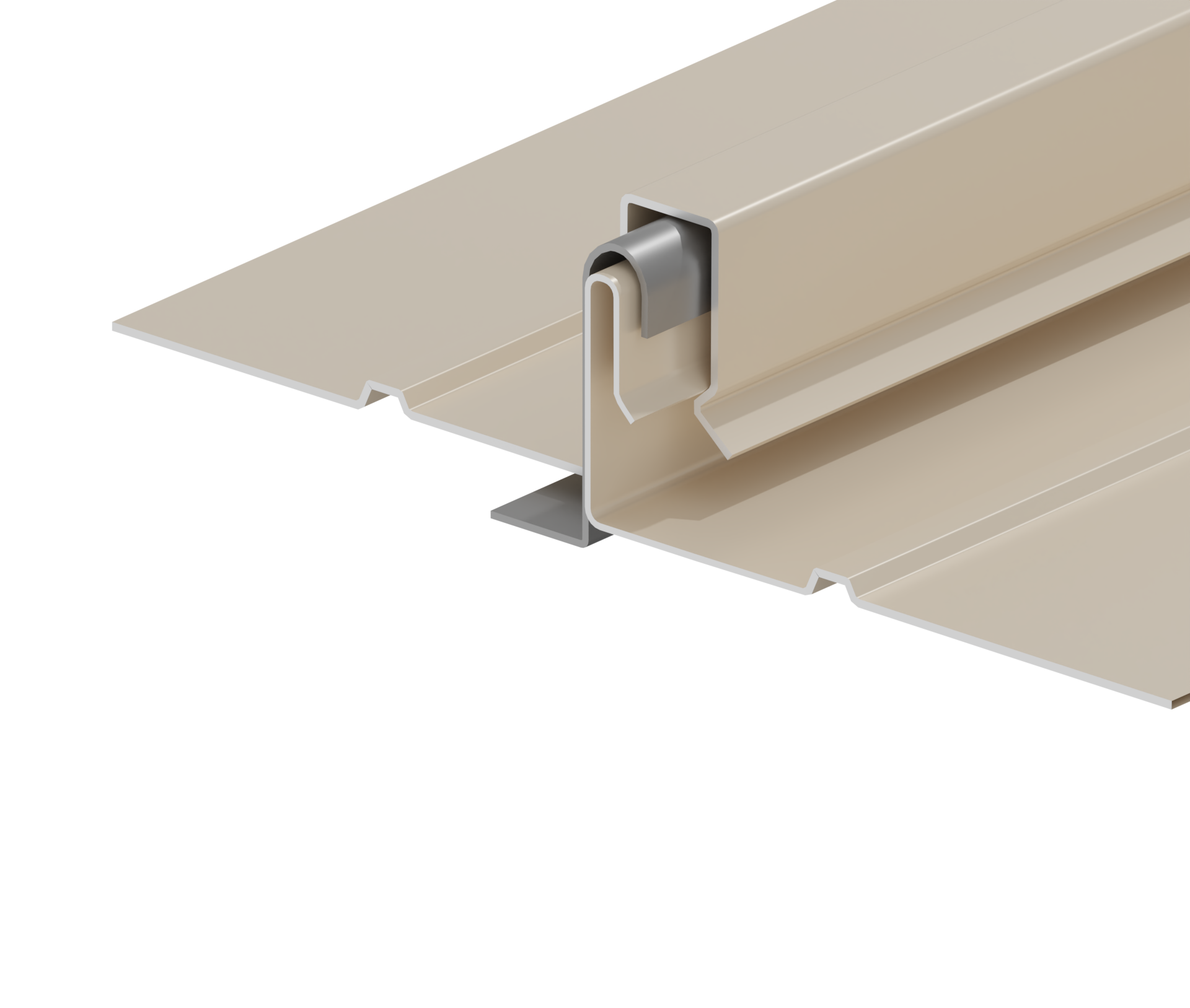

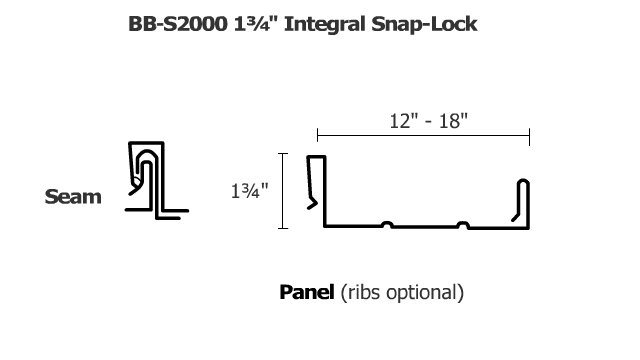

BB-S2000 Roof Panel Details Structural Use: Suitable for a range of structural applications with architectural detail capabilities. Approval: Miami-Dade and Florida Product Approval, as well as TDI approved. Slope Requirements: Requires a minimum slope of 3/12. Design: Features a narrow seam and is extensively tested, including ASTM water and air tests, ASTM-E84 for Class A Fire rating, and ASTM-E1592 for structural performance. Standards: Meets UL 580, Class 90 standards and includes weather-tightness warranties for added durability.
Share
B&B Sheet Metal is a leading manufacturer of exterior architectural sheet metal products in the northeast. We are known for our attention to detail, our design capabilities, our competitive pricing and our lead time on all our projects.
