Aluminum Composite Panels with a tested track system are specifically designed for rain screen applications, ensuring a seamless and modern appearance without visible rivets or screws along the edges. These panels accommodate expansion and contraction through a Reverse-Lock configuration, which securely holds the ACM panels in place. They are Intertek tested to AAMA 508 and AAMA 501.1 standards and have passed ASTM E283, E331, E330, E1233, and NFPA 285 for durability and safety. Additionally, these panels are quick and easy to install, making them a cost-effective solution for high-performance building façades.
The ACM 1000 Wet and Dry System, manufactured by B&B Sheet Metal, features a Clip-Lock configuration that securely holds ACM panels in place without the need for rivets or screws on the edges. This system accommodates natural expansion and contraction, and can be fabricated in both rectangular and round column shapes. Intertek tested to ASTM E283, E331, and E330 standards, it ensures high performance and reliability. Additionally, the system is quick and easy to install, making it a cost-effective choice for various applications.
1000 Dry & Wet System usually placed at lower level building compare to 3000...

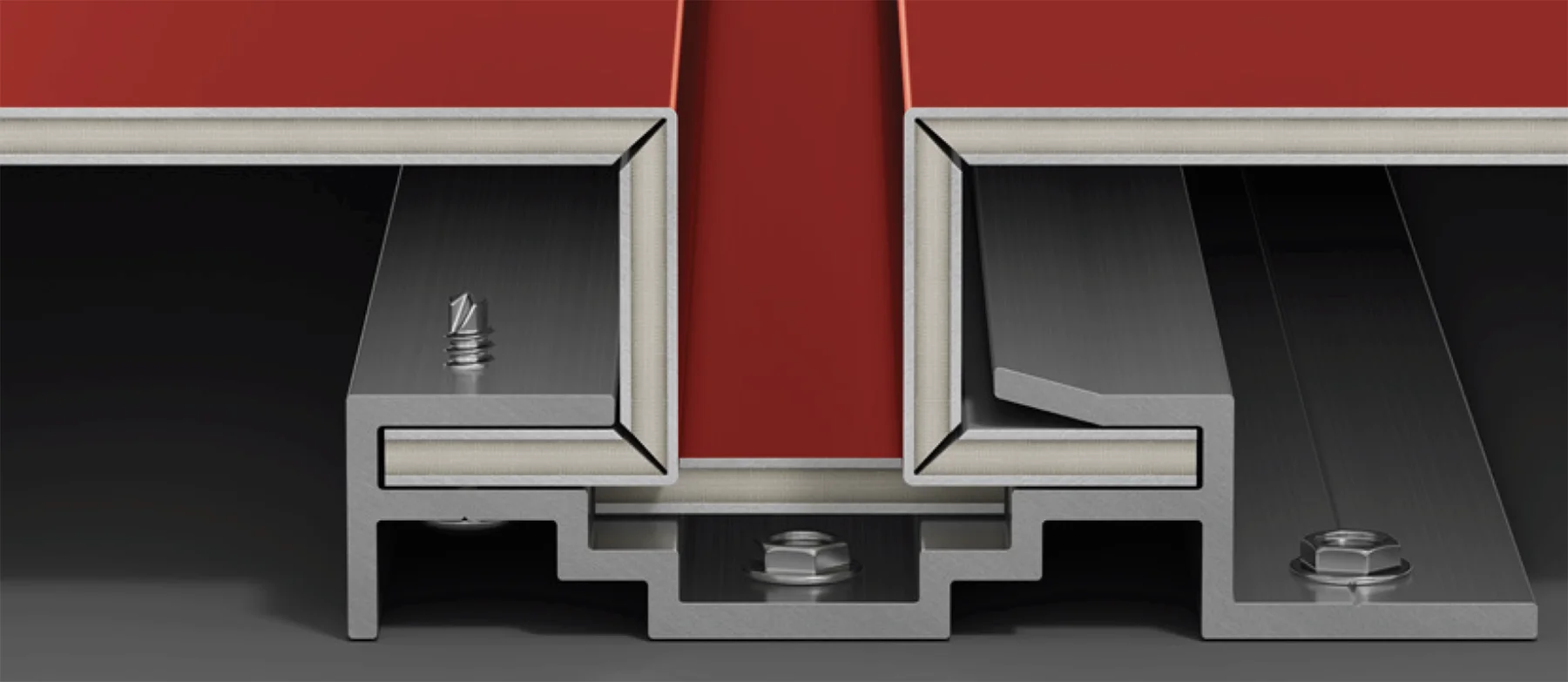

View ProductThe B&B Sheet Metal ACM 3000 Wet and Dry System is tested to meet key ASTM standards for performance, including ASTM E283, which ensures minimal air leakage and improved energy efficiency, ASTM E331, which verifies water resistance under simulated wind-driven rain, and ASTM E330, which confirms structural integrity under uniform load conditions. These tests validate the system’s durability and reliability in real-world applications.
3000 Dry & Wet System are usually installed at higher level building compare to 1000 Dry & Wet System. Dry seal has Gasket in the middle. Wet seal use glue in the middle.
View ProductB&B Sheet Metal produces top-tier ACM rainscreen systems in Long Island City. The Reverse-Lock Rainscreen Attachment System is uniquely crafted for rainscreen applications and utilizes a securement method that removes the need for rivets or screws along the panel edges. Designed to accommodate natural expansion and contraction, the reverse-lock configuration effectively keeps the ACM panels securely in place. Intertek certified to AAMA 508 and AAMA 501.1, this system also meets ASTM E283, E331, E330, E1233, and NFPA 285 standards, ensuring a quick, straightforward installation while being budget-friendly.
The ACM 3000 and 3D Rainscreen Systems combine sleek design with practical performance. Crafted from advanced aluminum composite materials, they enhance building aesthetics while providing excellent ...
